Key Features
- Robust components with high wear resistance
- Many maintenance-free and standard components
- Quick and easy maintenance access
- Bolt-on parts such as the pipe bracket
- Thanks to auto lubrication points, the operator can remain safely on the ground — the 38RZ-5 lubricates the first boom cylinder and the slewing bearing and hub independently
Technical Details
General Information
| Number of sections | 5 |

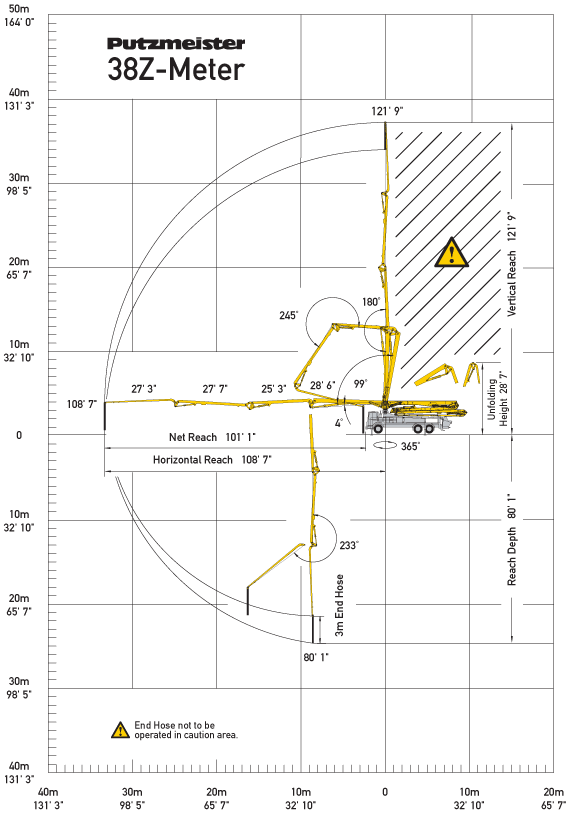

| Vertical Reach | 123′” |
| Horizontal Reach | 107’7 “ |
| Unfolding Height | 24’3 “ |
| Rotation | ° |
| End Hose Length max. | 10 “ |
Concrete Pump Cell .17 iLS
| Material Cylinder Diameter–Stroke Length | 10/83 “ |
| Output (piston side) | 222 yd³/hr |
| Delivery Pressure (piston side) | 1233 psi |
| Strokes (piston side) | 28 |
Concrete Pump Cell .16 H
| Material Cylinder Diameter–Stroke Length | 9 |
| Output (rod side) | 209 yd³/hr |
| Output (piston side) | 141 yd³/hr |
| Delivery Pressure (rod side) | 1233 psi |
| Strokes (rod side) | 31 |
