Key Features
- Lower fuel consumption and reduced wear due to optimal engine speed
- Fuel savings of up to 10%
- Avoids unfavorable ranges
- Designed with reduced gross vehicle weight, improved pipe layout and increased parts commonality
Technical Details
General Information
| Number of sections | 5 |

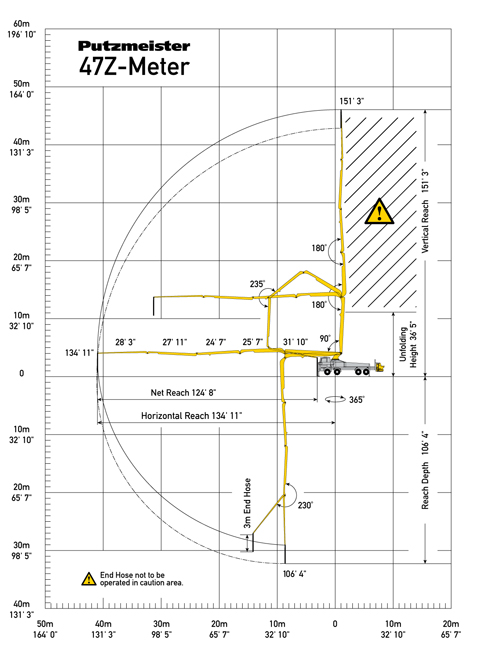

| Vertical Reach | 151’3″ |
| Horizontal Reach | 134’10” |
| Unfolding Height | 36’5″ |
| Rotation | ° |
| End Hose Length max. | 10′ |
Concrete Pump Cell .17 iLS
| Material Cylinder Diameter–Stroke Length | 10/83 “ |
| Output (piston side) | 222 yd³/hr |
| Delivery Pressure (piston side) | 1233 psi |
| Strokes (piston side) | 28 |
Concrete Pump Cell .16 H
| Material Cylinder Diameter–Stroke Length | 9 |
| Output (rod side) | 209 yd³/hr |
| Output (piston side) | 141 yd³/hr |
| Delivery Pressure (rod side) | 1233 psi |
| Strokes (rod side) | 31 |
