Low Speed Steer Assist System Increases Maneuverability

Who says you can’t have reach and excellent maneuverability? When you need a big machine with excellent maneuverability, the 63RZ is your choice. The versatile five-section RZ-Fold boom has 203 feet 9 inches of vertical reach on a chassis with rear steering.

Putzmeister’s Low Speed Steer Assist is the first of its kind – three computer controlled steering axles in the front and two in the rear provide a very tight turning radius of only 58 feet 6 inches.

The 63RZ-Meter comes with the latest Ergonic®3.0 Control System and the new intelligent low stroke pump cell (option).

Add to Cart
63RZ-Meter
63RZ-Meter
R0,00
Contact us on WhatsApp

Free nationwide shipping on all orders over R5000.00

  • 15 days easy returns
  • Order yours before 2.30pm for same day dispatch
Guaranteed Safe Checkout

63RZ-Meter
63RZ-Meter
R0,00
Contact Us
Please enable JavaScript in your browser to complete this form.

Key Features

  • Ideal for Major construction sites
  • Increased fuel efficiency
  • Low ceiling height
  • Reduced component wear
  • Free flow hydraulic system
  • Innovative RFID safety switch in the hopper disables the machine when the grate is opened

Technical Details

General Information

Number of sections 5

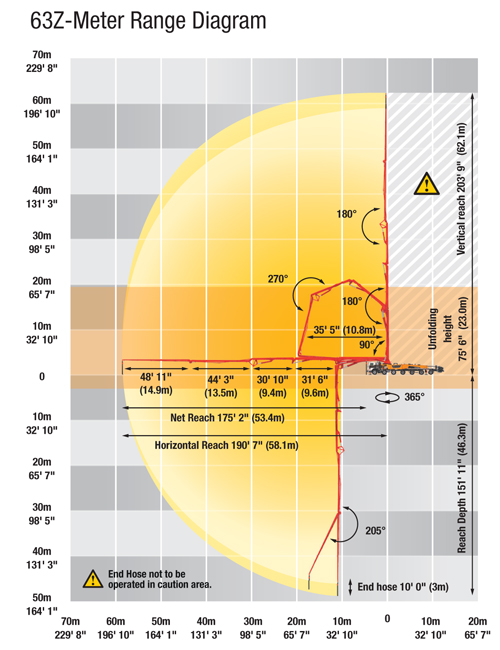

Vertical Reach 203’9″
Horizontal Reach 190’7″
Unfolding Height 75’6″
End Hose Length max. 10′

Concrete Pump Cell .17 iLS

Material Cylinder Diameter–Stroke Length 10/83 “
Output (piston side) 222 yd³/hr
Delivery Pressure (piston side) 1233 psi
Strokes (piston side) 28

Concrete Pump Cell .16 H

Material Cylinder Diameter–Stroke Length 9
Output (rod side) 209 yd³/hr
Output (piston side) 141 yd³/hr
Delivery Pressure (rod side) 1233 psi
Strokes (rod side) 31
