BSA 14000 HP D5

R0,00

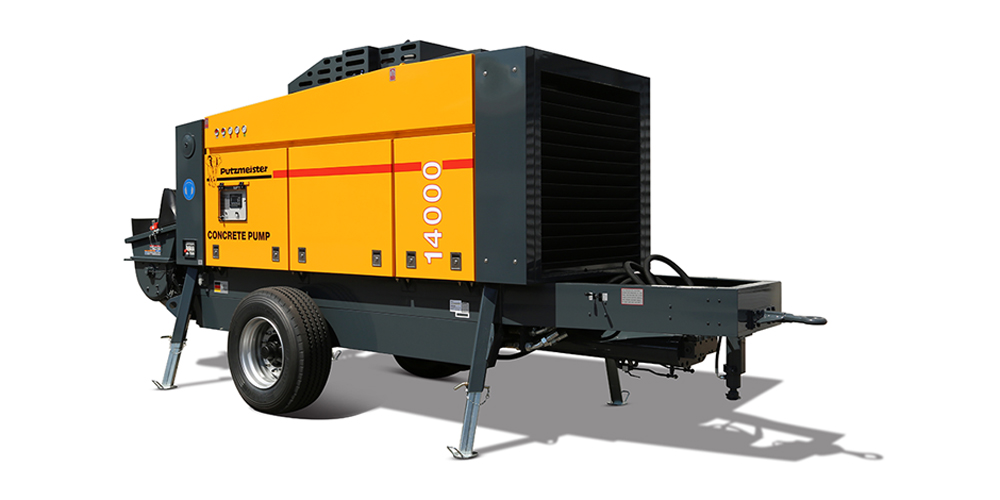

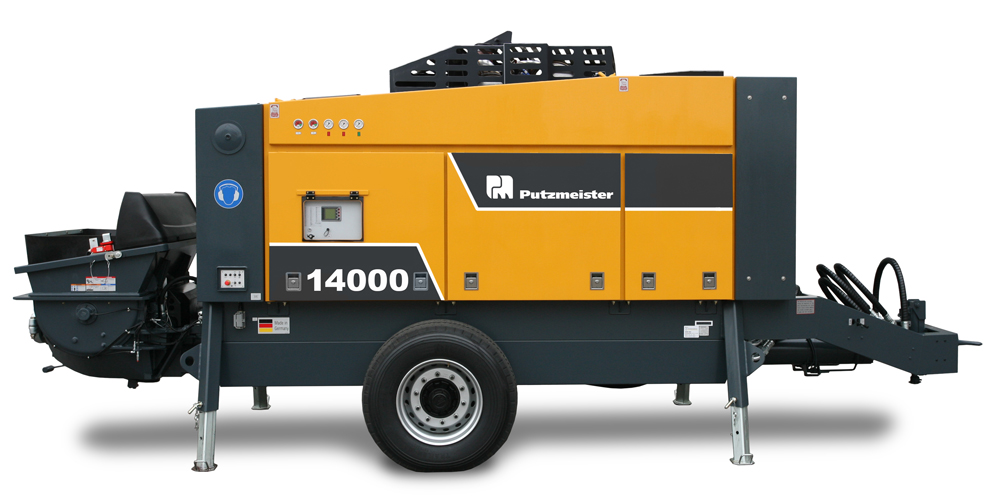

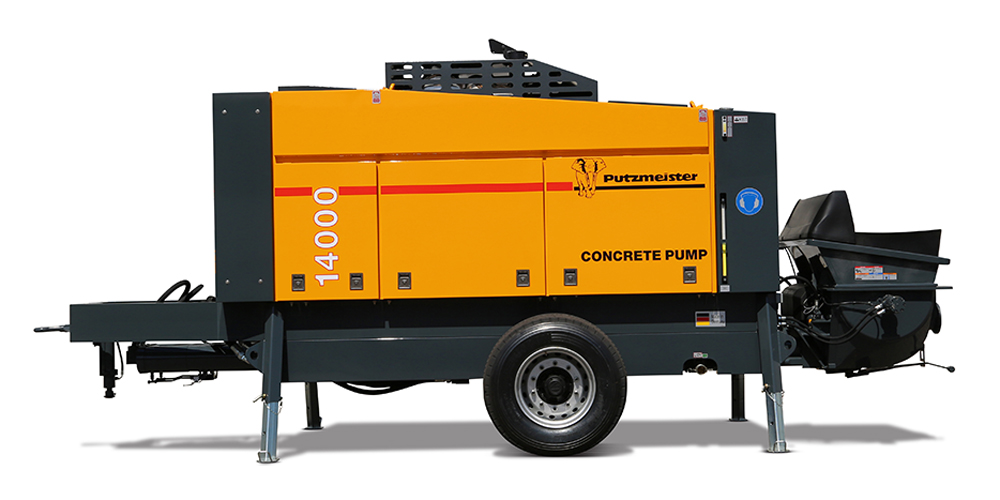

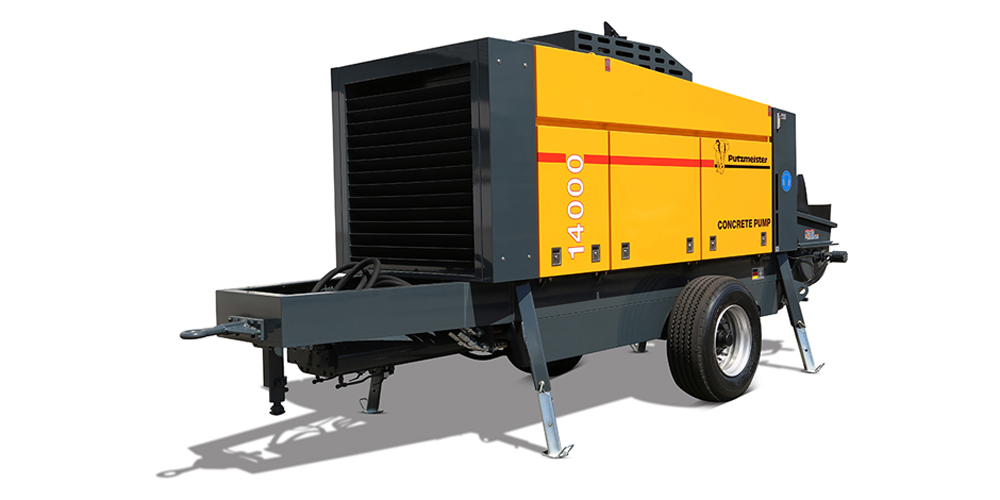

The high-performance concrete pump with the latest EU Stage V diesel engine

In the further development of the proven stationary concrete pump BSA 14000 HP D, our aim was to bring the emission guidelines into line with the needs of our customers. With the result that in future you can even increase your competitiveness while complying with the emission limits with more power and reduced fuel consumption.

Powered by a modern 470 kW Caterpillar diesel engine with EU Stage 5 emissions rating, there are almost no limits for the BSA 14000 HP D5.

From long-distance pumping to building construction applications – this pump masters it all.

Add to Cart
BSA 14000 HP D5
BSA 14000 HP D5
R0,00
Contact us on WhatsApp

Free nationwide shipping on all orders over R5000.00

  • 15 days easy returns
  • Order yours before 2.30pm for same day dispatch
Guaranteed Safe Checkout

BSA 14000 HP D5
BSA 14000 HP D5
R0,00
Contact Us
Please enable JavaScript in your browser to complete this form.

Key Features

  • According to the rule 97/68/EG, Stage V or rather Tier 5 final
  • CE mark
  • Less operating costs
  • Reduced noise development
  • Up to 15% increased performance in comparison to Stage III/ Tier 3 engines

Technical Details

General Information

Output (rod side) 110 yd³/hr
Output (piston side) 74 yd³/hr
Delivery Pressure (rod side) 229 psi
Delivery Pressure (piston side) 335 psi
Strokes (rod side) 26
Strokes (piston side) 17
Engine Power 630 hp
Material Cylinder Diameter-Stroke Length 7″/83″ “
Outlet Diameter ZX125 “
Length x Width x Height 308″ x 101 x 142″ ‘ “
Weight 27558 lbs
Trailer Type Tandem Axles

Brochure

Download(3 MB)

Spec Sheets

Download(161 KB)
