| Output (rod side) | 52 m³/hr |
| Output (piston side) | 77 m³/hr |
| Delivery Pressure (rod side) | 109 bar |
| Delivery Pressure (piston side) | 73 bar |
| Strokes (rod side) | 20 |
| Strokes (piston side) | 29 |
| Engine | Electric IE4 |
| Engine Power | 110 kW |
| Material Cylinder Diameter – Stroke Length | 200 x 140 mm |
| Outlet Diameter | 125 mm |
| Length x Width x Height | 5565 x 1778 x 2106 mm |
| Weight | 700 kg |
| Trailer Type | Skid chassis |

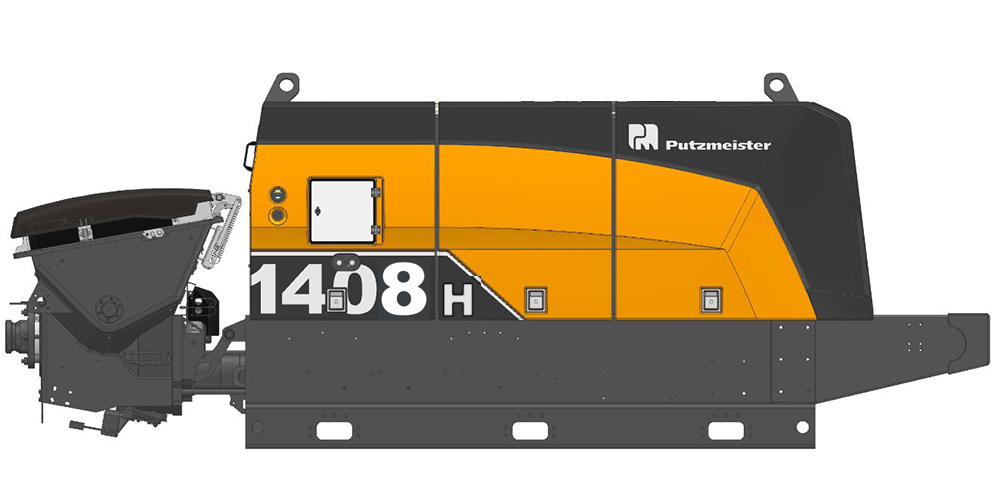

BSA 1408 HE 2025
R0,00
The new version of the environmentally friendly BSA 1408 HE with electric motor for continuous operation in precast concrete plants
In short: Our best BSA ever.
The new BSA 1400 series offers more variants based on the same components such as frame, hood, strongest core pump with reinforced funnel for 24/7 operation, combined with many improvements.
We listened carefully to the needs of customers and operators, and developed the pump not only according to these requirements, but also with user-friendliness, intuitiveness, reliability, and cost-efficiency for service personnel in mind. The new BSA 1400 series is a true masterpiece from the Putzmeister team.
Equipped with an environmentally friendly electric motor on a skid frame. Specially designed for precast concrete plants.
