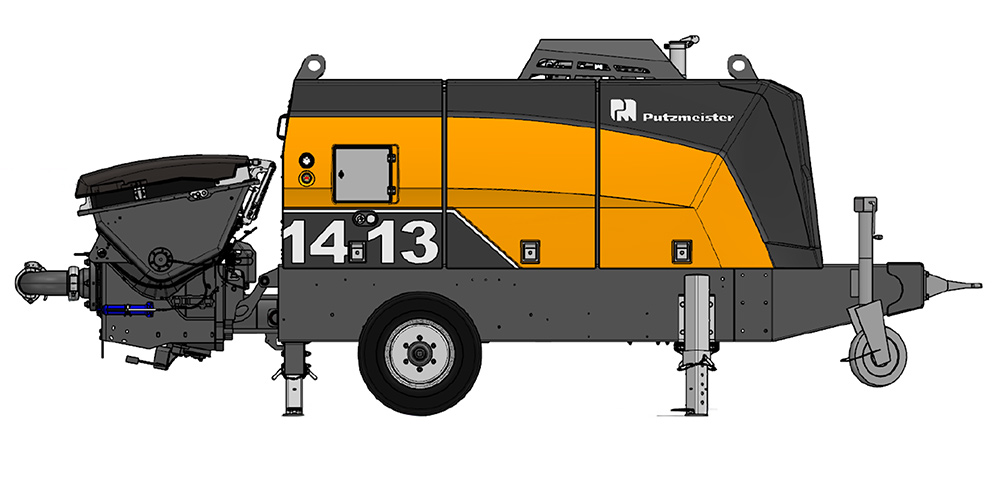

BSA 1413 D5

R0,00

Created for piling applications where the focus is on high Output

In one word. Our best BSA ever.

The new BSA 1400 series offers more variants based on same components such as the frame, the hood or the core pump combined with literally millions of improvements.

We listened carefully what the customers and operators needed and designed the pump not only according to this need but as well as for the service people and the controller’s in the office when it comes to usability and intuitivity, reliability and cost efficency. The new BSA 1400 series is a real masterpiece of the Putzmeister team.

Equipped with latest STAGE V engine.

Add to Cart
BSA 1413 D5
BSA 1413 D5
R0,00
Contact us on WhatsApp

Free nationwide shipping on all orders over R5000.00

  • 15 days easy returns
  • Order yours before 2.30pm for same day dispatch
Guaranteed Safe Checkout

BSA 1413 D5
BSA 1413 D5
R0,00
Contact Us
Please enable JavaScript in your browser to complete this form.

Key Features

  • Fully new arranged SBU arrangement for a faster change from rod to piston drive side
  • Complete new Human machine interface (HMI) (with basic operational functions directly accessible and large coloured 7″ display)
  • Increased diesel tank capacity from 120 litres to 200 liters
  • 26% less hydraulic oil volume due to streamlined control systematics and new pump control Ergonic® 3 FFH
  • Splash guard series
  • Frame with more stability and lifetime
  • Front support wheel series for easier positioning and manouverability
  • Ultra robust glass fibre reinforced hood with enhanced service accessibility



Technical Details

General Information

Output (rod side) 87 m³/hr
Output (piston side) 130 m³/hr
Delivery Pressure (rod side) 82 bar
Delivery Pressure (piston side) 55 bar
Strokes (rod side) 25
Strokes (piston side) 37
Engine DEUTZ TCD 6.11.06
Engine Power 180 kW
Engine Emissions V
Material Cylinder Diameter – Stroke Length 230 x 140 mm
Outlet Diameter 125 mm
Length x Width x Height 5945 x 1922 x 2462 mm
Weight 550 kg
Trailer Type F8
