MXTB 130

R0,00

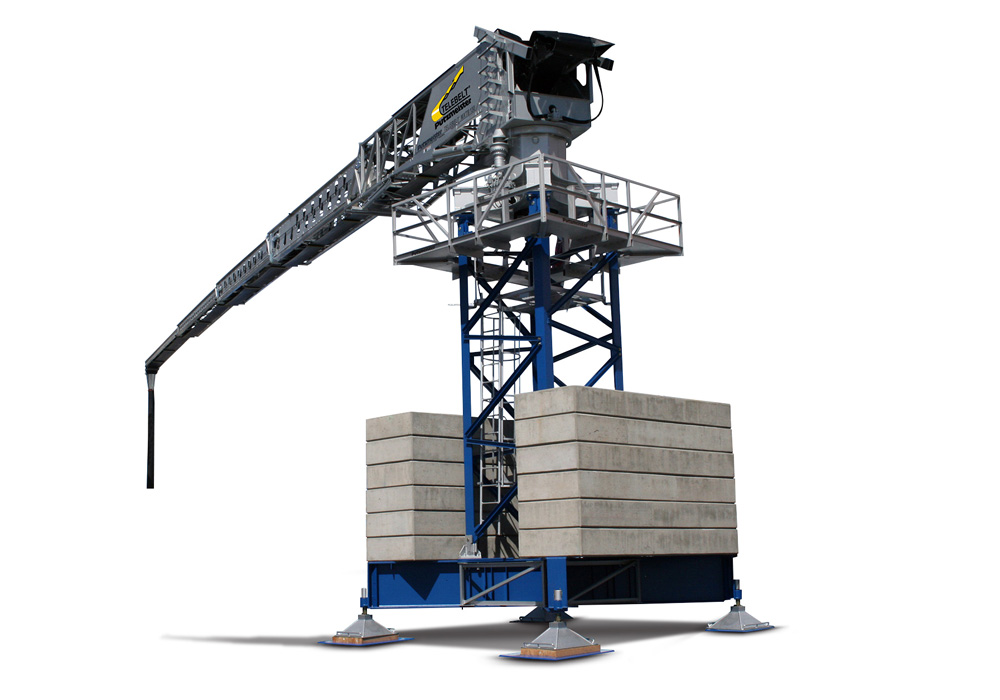

Lattice Tower Offers Numerous Mounting Options

The MXTB 130 features a five-section telescopic conveyer with a smooth, “surge-free” flow and the ability to perform multiple tasks from a single location, and is designed for mass placement of large aggregate concrete. With a horizontal reach of up to 126 feet 6 inches (38.6 meters), it can easily access difficult-to-reach areas.

The boom, comprising high strength aluminum sections, is easy to operate and offers 360-degree rotation and variable belt speeds. Additionally, its lattice tower can free-stand up to 80 feet (24.38 meters). The Putzmeister Telebelt® MXTB 130 is versatile, and ideal for a variety of large civil projects, such as dams, hydroelectric projects, power plants, and landfill lining.

Add to Cart
MXTB 130
MXTB 130
R0,00
Contact us on WhatsApp

Free nationwide shipping on all orders over R5000.00

  • 15 days easy returns
  • Order yours before 2.30pm for same day dispatch
Guaranteed Safe Checkout

MXTB 130
MXTB 130
R0,00
Contact Us
Please enable JavaScript in your browser to complete this form.

Key Features

  • Boom with 360-degree rotation
  • Lattice tower that can free-stand up to 80′ (24.38m)
  • Surge-free flow
  • Easy to understand systems with straightforward maintenance procedures
  • 24/7 customer service via telephone with experienced technical representatives to resolve application and maintenance issues
  • Comprehensive operation, maintenance and safety manuals with video support

Technical Details

General Information



Parameter Value
Number of sections 5
Conveyor Horizontal Reach 126’6″
Conveyor Horizontal Reach 110’9″
Conveyor Belt Width 18 “
End Hose Length max. 15′
Discharge height from grade 68’3″
Discharge height from grade -25’10”
Observed capacity 6 yd³/min
Observed capacity 3.80 yd³/min
Rotation 360°
Lattice Tower Section Height (Option 1-2) 9’11”
Lattice Tower Section Weight (Option 1-2) 5,577/7,330 lbs
Lattice Tower Section Width (Option 1-2) 6’7″
Engine Deutz Diesel, 6 Cylinder
Engine Emissions 3A/Tier 3
Displacement 1.60 gal
Power 208 hp
Boom Weight 16,800 lbs
Pedestal Weight 13,000 lbs
Weight 29,800 lbs
