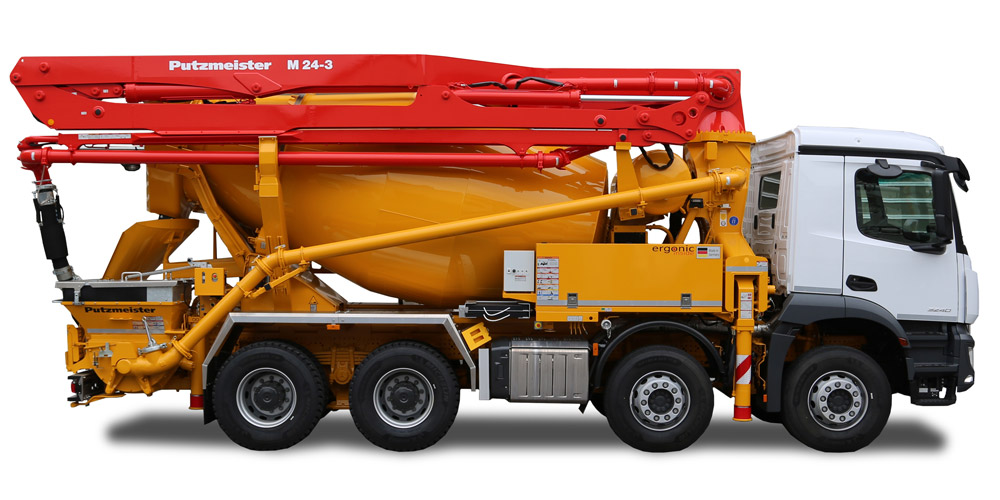

Key Features
- High payload of over 5 m³ on 4-axle chassis
- Ideal for small jobsites with the rotor pump
- Available on a maneuverable 3-axle chassis with small wheelbase
- Concreting directly in front of the drivers cabin
- Machine can be equipped with different useful accessories
Technical Details
| General Information | |
| Number of sections | 3 |
| Boom Style | Z-Folding |

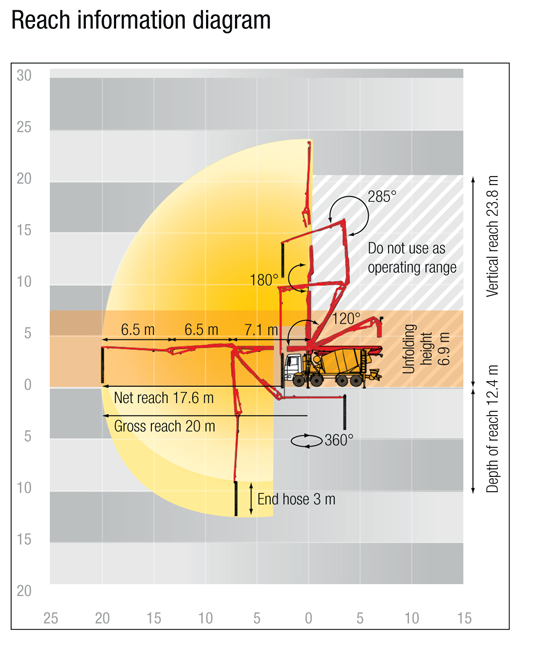

| Vertical Reach | 23.8 m |
| Horizontal Reach | 20. m |
| Reach from Front of Truck | 17.6 m |
| Reach Depth | 12.4 m |
| Unfolding Height | 6.9 m |
| End Hose Length max. | 3 m |
| Delivery Line | DN125/85 bar |
| Nominal Fill | 7 m³ |
| Filling Ratio | 60% |
| Drum Speed | 1–14 rpm |
| Water Tank | 650 l |
Configuration
Piston Pump CS
| Parameter | Value |
|---|---|
| Output | 56 m³/hr |
| Delivery Pressure | 57 bar |
| Material Cylinder Diameter – Stroke Length | 230/700 mm |
| Strokes | 32 |
Rotor Pump R 60
| Details | (Not provided in the supplied text) |
