Truck Mixer Concrete Pump with 4-Arm Placing Boom

The original PUMI® by Putzmeister combines pump, mixer and placing boom in a single machine. It is an addition to the fleet of truck-mixers held by service and customeroriented suppliers of ready-mixed concrete and significantly extends the range of jobs they can take on: a PUMI® is particularly economic wherever truck-mounted concrete pumps are too expensive or too big and inflexible or wherever truck-mixer conveyor belts are not adequate. In particular, it can be operated cheaply and quickly in small construction sites up to approximately 20 m³.

Add to Cart
PUMI 28-4
PUMI 28-4
R0,00
Contact us on WhatsApp

Free nationwide shipping on all orders over R5000.00

  • 15 days easy returns
  • Order yours before 2.30pm for same day dispatch
Guaranteed Safe Checkout

PUMI 28-4
PUMI 28-4
R0,00
Contact Us
Please enable JavaScript in your browser to complete this form.

Key Features

  • 4-arm placing boom with optimised slip characteristics
  • Torsion-resistant integral frame ensuring longer service life
  • Safe operation with a lighting concept for improved illumination of the control points and setup locations
  • Userfriendly with modern Ergonic 2 control
  • Mixer drum from high-strength special steel, extremely wear-resistant over maximum service life
  • Various pump technologies available Q, S or CS-pump
  • Optional Variable support system

Technical Details

General Information

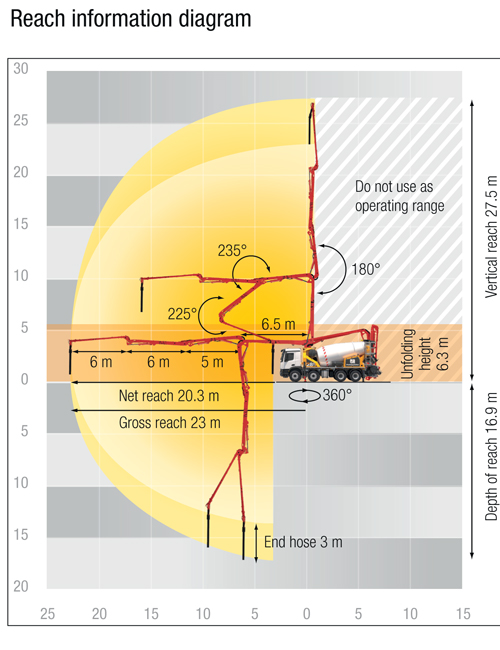

Number of sections 4
Boom Style Z-Folding
Vertical Reach 27.5 m
Horizontal Reach 23. m
Reach from Front of Truck 20.3 m
Reach Depth 16.9 m
Unfolding Height 6.3 m
End Hose Length max. 3 m
Delivery Line DN100 / 85 bar
Nominal Fill 7 m³
Filling Ratio 60%
Drum Speed 1–14 rpm
Water Tank 630 l

Spec Sheets

Download(1 MB)
