Key Features
- The slide on cardan shaft makes it easier to change the pump parts
- Protective grill with integral safety switch folds open for maintenance and cleaning
- Intelligent positioning of mixing blade
- Large robust material hopper (5.5 ft³ (156 L))
- Perfectly adapted mixer (2.8 ft³ (80L)) for rapid material processing
- Flexible and used in a host of applications
- Worm pump with powerful 7.5 hp (5.5 kW) drive used for maximum versatility
Technical Details
General Information
| Feed Hopper | 5.5 ft³ |
| Output | .24–1.5 ft³/min |
| Horizontal Reach | 260′ |
| Vertical Reach | 195′ |
| Delivery Pressure | 360 psi |
| Pump | 2L88 |
| Engine | Electric |
| Engine Power | 7.5 hp |
| Operating Voltage – Frequency | 208/230 V / 60 Hz |
| Weight | 135 lbs |
| Length × Width × Height | 95.5″ × 28.5″ × 32″ |

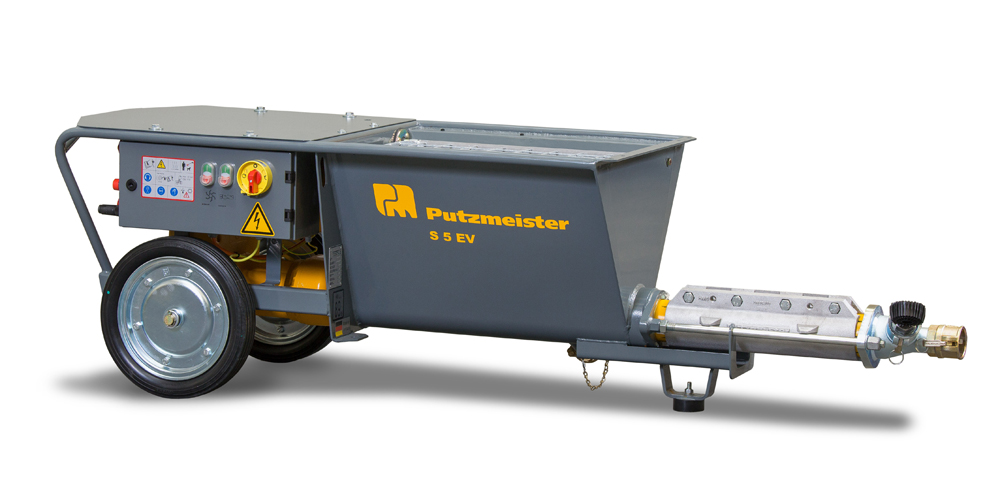

| Filling Height | EV: 25.5″ / EVTM: 45.5″ |
| Max. Aggregate Size | .25″ |
| Outlet Diameter | M 50 “ |
Configuration

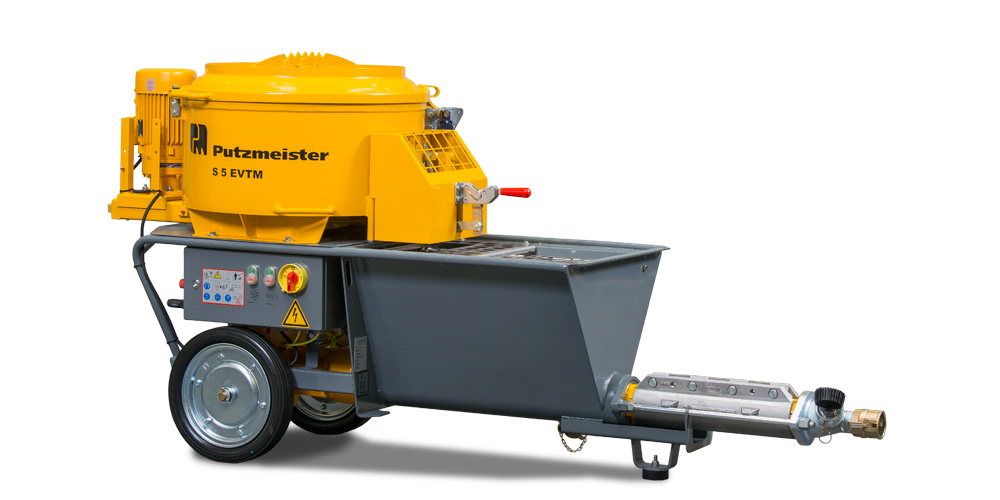

S 5 EVTM
| Engine Power | hp |
| Weight | lbs |
| Length × Width × Height | ‘ “ |
| Filling Height | “ |
