TB 130

R0,00

Versatile Use in Countless Applications

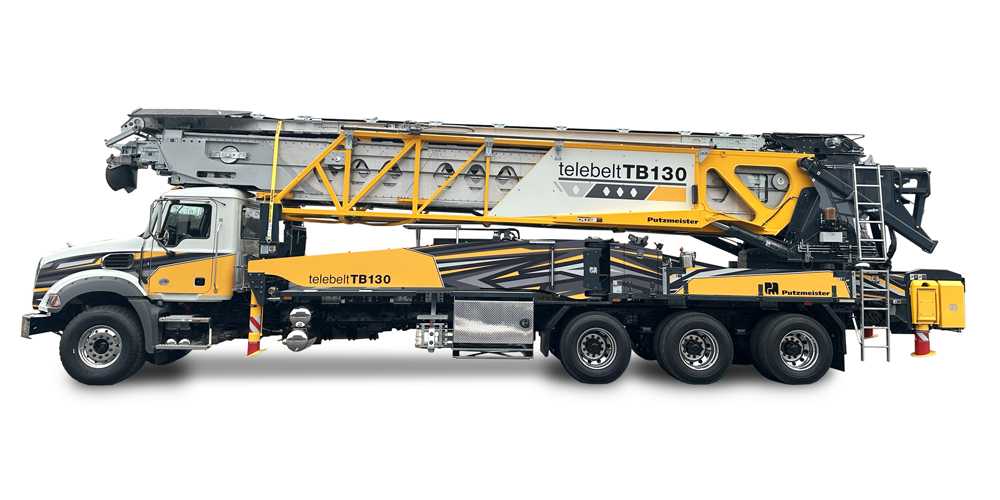

Strong, yet lightweight and easy to control, the Putzmeister Telebelt® TB 130 conveyer has a 126′ 3″ (38.47m) horizontal reach to save you time and labor. The five-section telescoping boom and fully hydraulic conveyor handle concrete slumps from 0 to 12 inches (0 to 305mm) and materials ranging from sand to 4-inch (100mm) rock. With an outrigger design for quick setup in congested areas and rough terrain, the TB 130 is ideal for projects such as wind farms, dams, bridge decks, and landscaping.

Add to Cart
TB 130
TB 130
R0,00
Contact us on WhatsApp

Free nationwide shipping on all orders over R5000.00

  • 15 days easy returns
  • Order yours before 2.30pm for same day dispatch
Guaranteed Safe Checkout

TB 130
TB 130
R0,00
Contact Us
Please enable JavaScript in your browser to complete this form.

Key Features

  • Six hopper options to fit different job needs
  • Low unfolding height
  • Handles high volumes, wide variety of materials
  • Reversing conveyor feature to switch direction of material flow
  • Performs multiple tasks from one location



Technical Details

General Information

Parameter Value
Number of sections 5

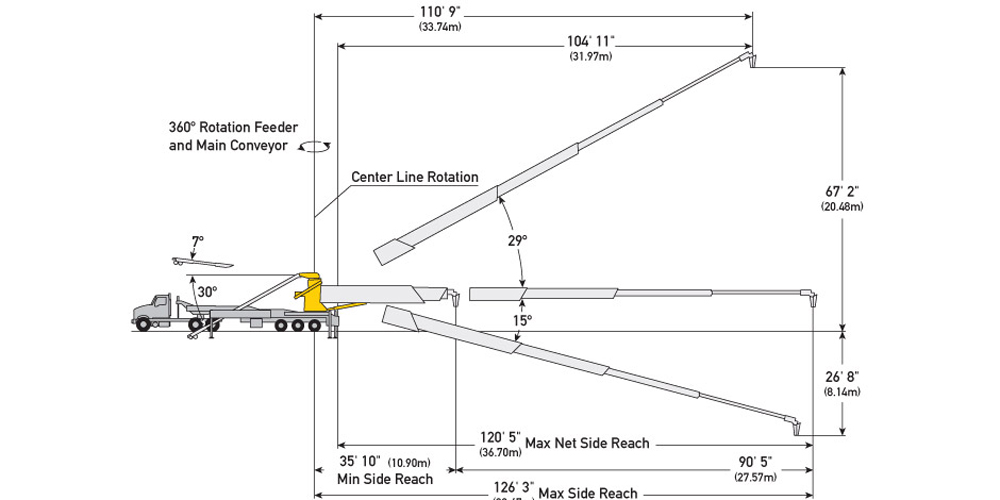

Conveyor Horizontal Reach 126’3″
Conveyor Horizontal Reach 109’7″
Conveyor Belt Width 18″
Feed Conveyor Length 38’
Feed Conveyor Belt Width 18″
End Hose Length max. 15’
Discharge height from grade 68’3″
Discharge height from grade -25’10″
Observed capacity 5 yd³/min
Observed capacity 5 yd³/min
Reach from Front of Truck 120’9″
Reach from Front of Truck 105’
Outrigger spread – hydraulically rotate out and down (front-rear) 27’9″
Outrigger load: Front-Rear 37,320/45,190 lbf
Weight 78,292 lbs
