TBS 130

R0,00

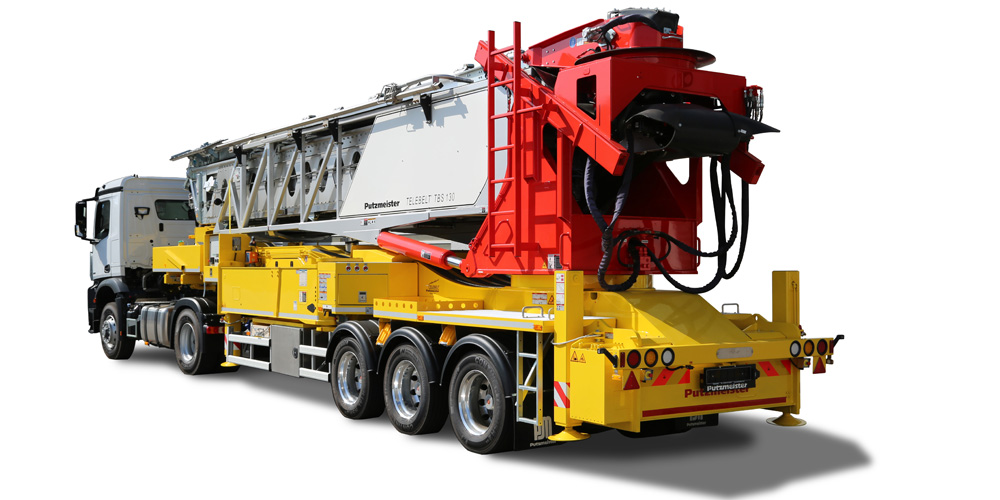

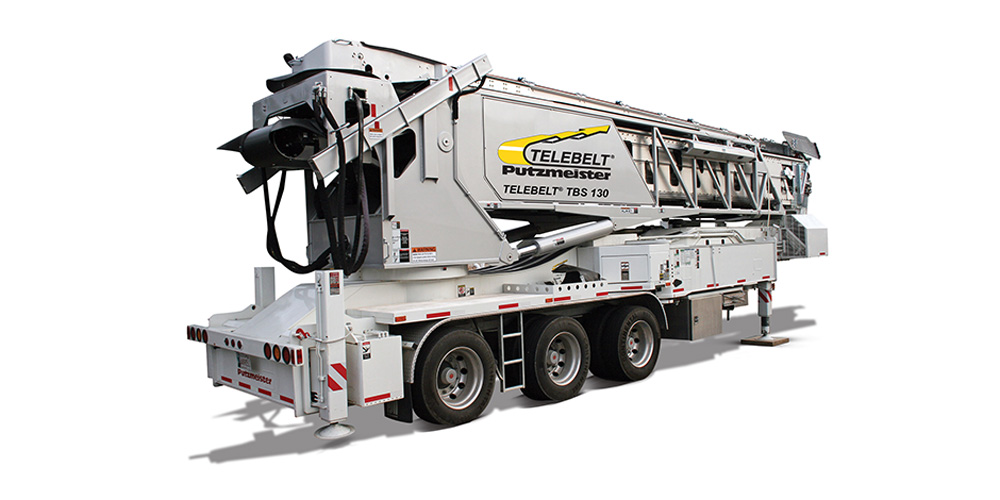

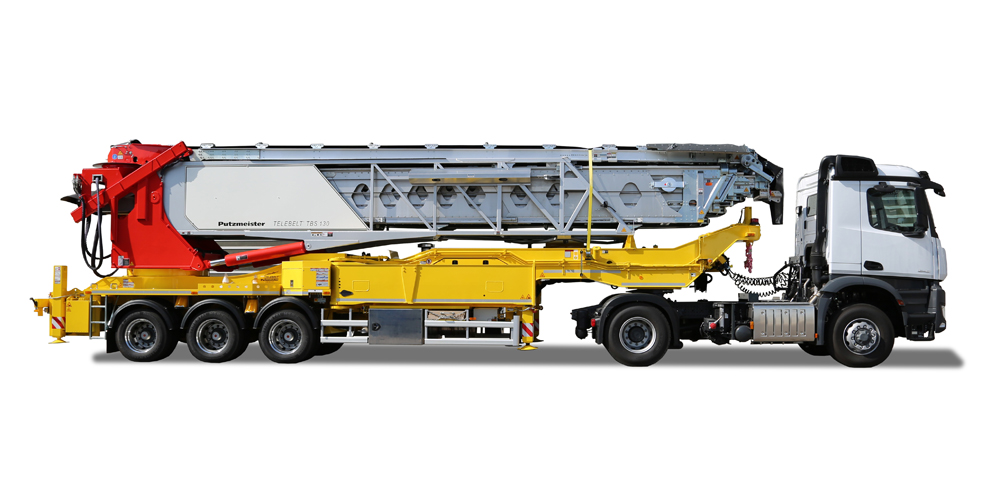

Versatile 18″ Conveyor with 5th Wheel Configuration

The Putzmeister Telebelt® TBS 130 conveyor features the 5th wheel configuration, which provides greater mobility, tighter turning radius, reduced axle loads and a reduced footprint on the job site. It has a horizontal reach of 126 feet 3 inches and delivers an output of up to 5 cubic yards per minute.

You can specify the type of chassis and the trailer axle configuration to meet your specific local requirements. The TBS 130 is designed for wind farms, dams, bridge decks and hydroelectric projects.

Add to Cart
TBS 130
TBS 130
R0,00
Contact us on WhatsApp

Free nationwide shipping on all orders over R5000.00

  • 15 days easy returns
  • Order yours before 2.30pm for same day dispatch
Guaranteed Safe Checkout

TBS 130
TBS 130
R0,00
Contact Us
Please enable JavaScript in your browser to complete this form.

Key Features

  • Low unfolding heights
  • Six hopper options for different job needs
  • 5th wheel configuration for mobility, tighter turning radius and reduced axle loads
  • Telescoping boom

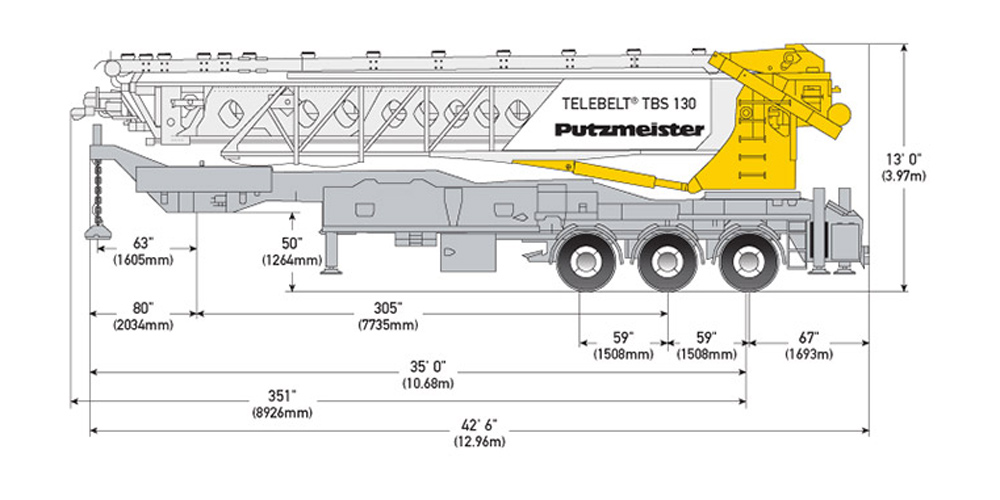

Technical Details

General Information



Parameter Value
Number of sections 5

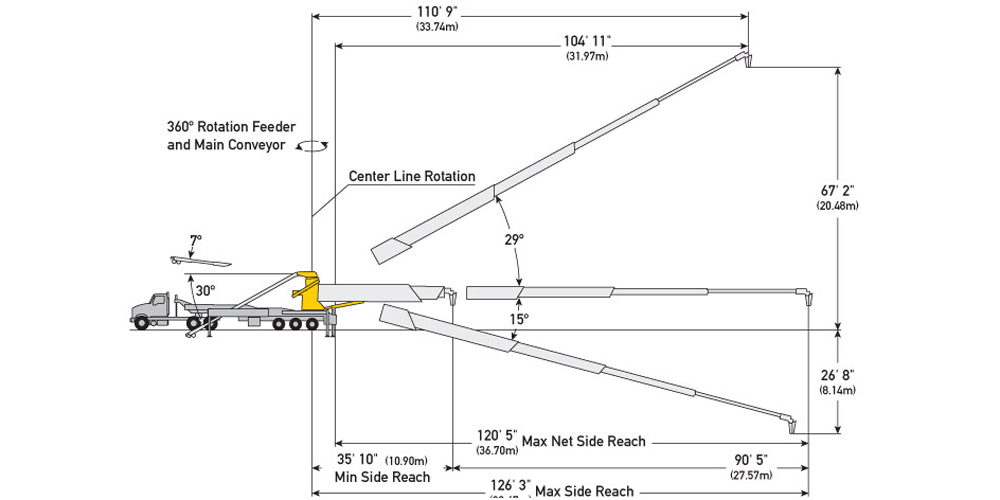

Conveyor Horizontal Reach 126’3 “
Conveyor Horizontal Reach 110’9 “
Conveyor Belt Width 18 “
Feed Conveyor Length 38′ “
Feed Conveyor Belt Width 18 “
End Hose Length max. 15′ “
Discharge height from grade 67’2 “
Discharge height from grade -26’8 “
Rated capacity main and feed conveyors by minute 5.00 yd³/min
Rated capacity main and feed conveyors by minute 5.00 yd³/min

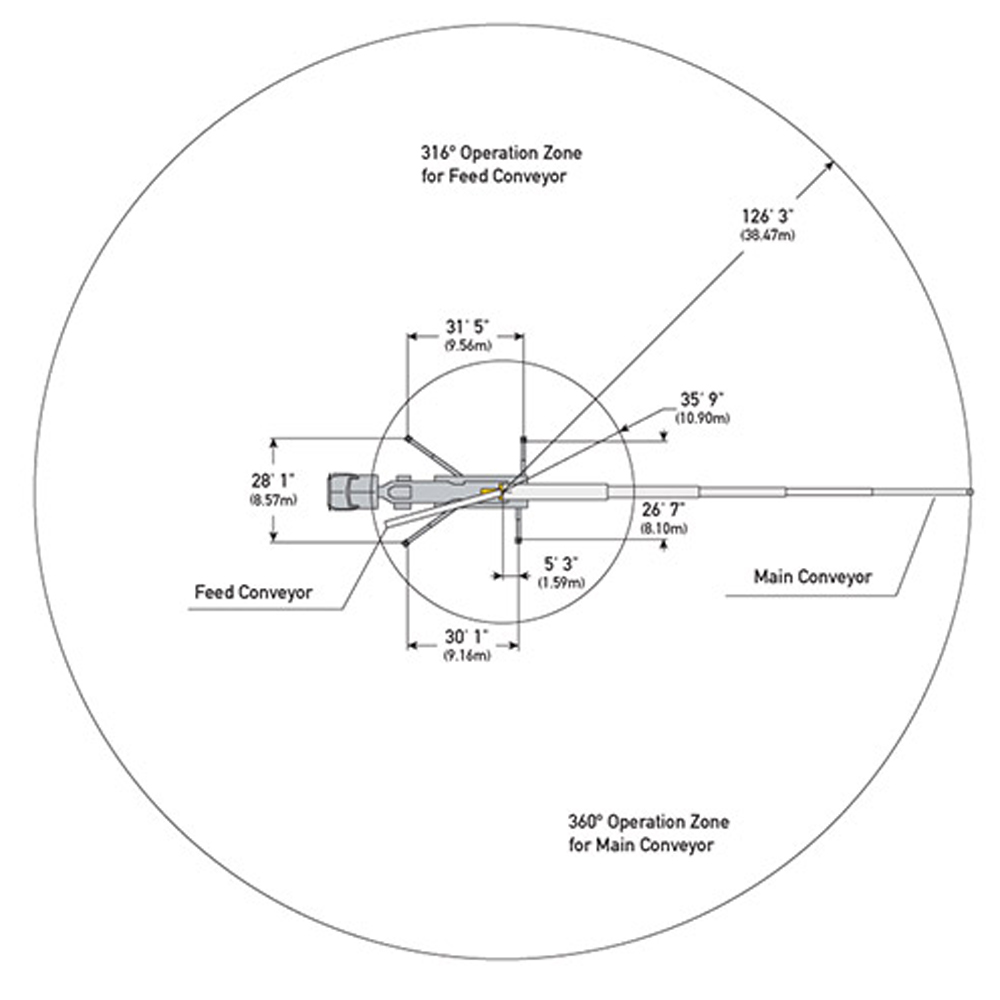

Rotation 360°
Reach from Front of Truck 120’5″
Reach from Front of Truck 104’11”

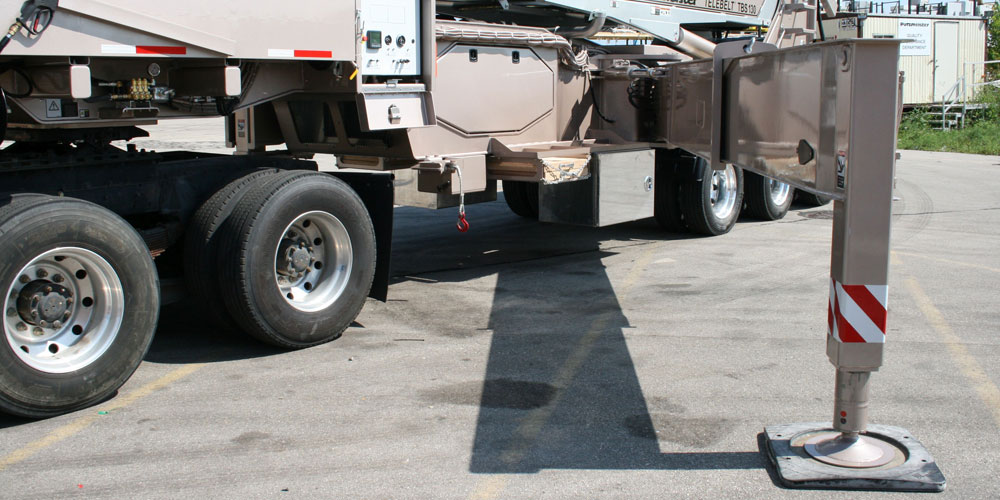

Outrigger spread – hydraulically rotate out and down (front-rear) 28’1″
Outrigger load: Front-Rear 52,605/46,310 lbf
Weight 80,228 lbs
Engine Deutz TCD2012 (Caterpillar C6.6 ACERT optional)
Engine Power 208 hp
