More Horsepower for Shotcrete Work, Ideal for a Wide Variety of Concrete Placing

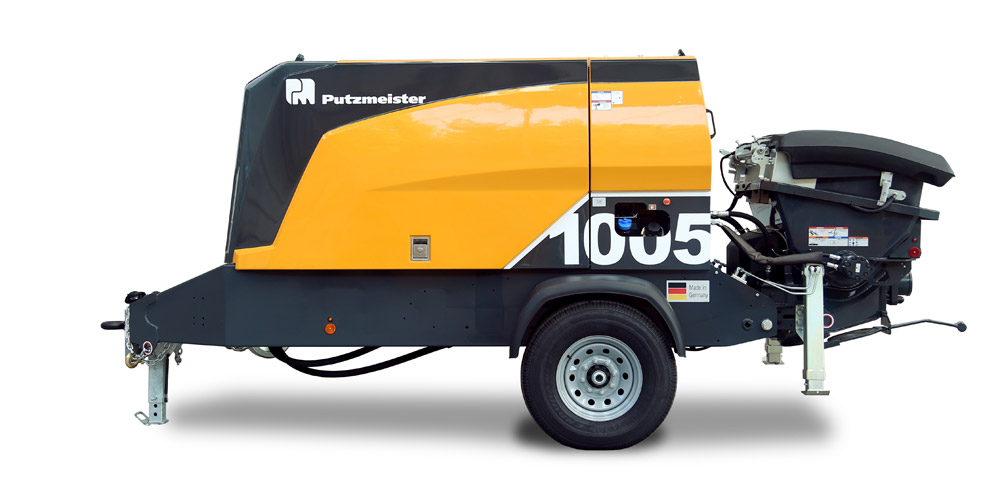

The Putzmeister TK 1005 D4F is the compact concrete pump in the 1000 series, equipped with a Caterpillar CAT 3.6 diesel engine and the latest Ergonic ® 3 PS control. With the TK 1005 D4F, it is possible to deliver normal concrete with a grain size of up to 1.25″ (32 mm).

It is ideal for a wide variety of concrete placing jobs and for pumping structural concrete. It features an angled hopper that’s easier to fill and clean. The TK 1005 D4F can pump a variety of materials at up to 64 yd³/hr (49m³/hr), handle the harshest mixes, and tackle a variety of civil applications.

Add to Cart
TK 1005 D4F
TK 1005 D4F
R0,00
Contact us on WhatsApp

Free nationwide shipping on all orders over R5000.00

  • 15 days easy returns
  • Order yours before 2.30pm for same day dispatch
Guaranteed Safe Checkout

TK 1005 D4F
TK 1005 D4F
R0,00
Contact Us
Please enable JavaScript in your browser to complete this form.

Key Features

  • Fuel-economic automatic speed drawdown on pump stop
  • High-quality wear resistant components for service-life
  • Clear operating data and engine status indication via the display
  • CE mark

Technical Details

General Information

Output 64 yd³/hr
Delivery Pressure 1155 psi
Max. Aggregate Size 1.25 “
Strokes 45
Engine CAT 3.6
Engine Power 101 hp
Material Cylinder Diameter-Stroke Length 6″/39″
Hopper capacity approx. 10.6 ft³
Outlet Diameter 5 “
Length x Width x Height 189″x68″x86.6″
Weight 7385 lbs
Trailer Type Single/Tandem
