| Pump | Compressed-air conveyor |
| Delivery Pressure | 8 bar |
| Delivery Rate | 5 m³/hr |
| Delivery Range | 180 m horizontal, 90 m vertical |
| Max. Aggregate Size | 16 mm |
| Engine | Diesel, Kubota V3307 |
| Engine Power | 55.4 kW |
| Engine Emissions | V |
| Weight | 12600 kg |
| Water load capacity | 120 l |
| Length x Width x Height | 11.4 × 2.5 × 3.9 m |
| Geometric Volume | 25 m³ |

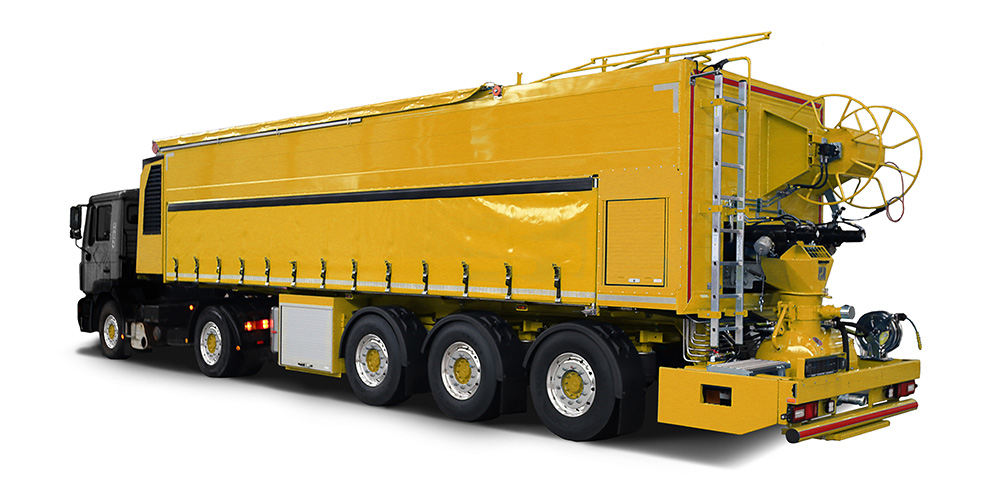

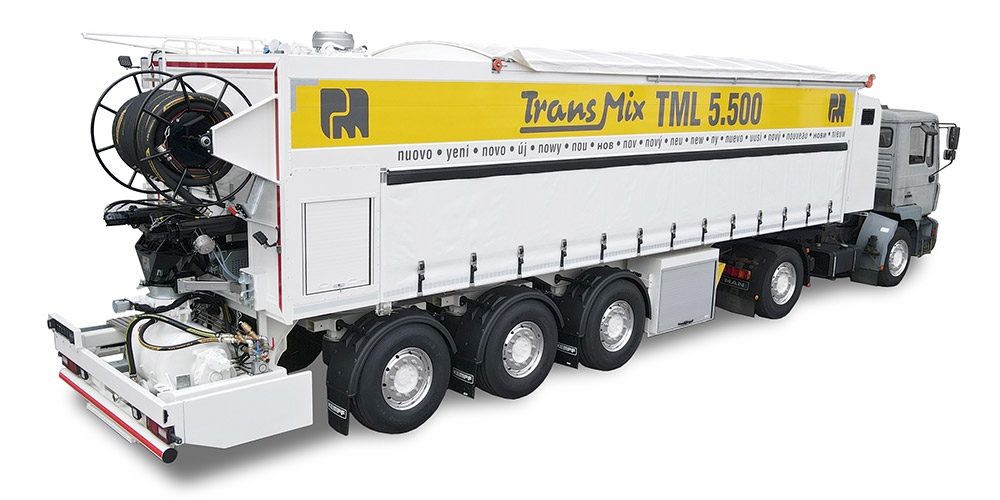

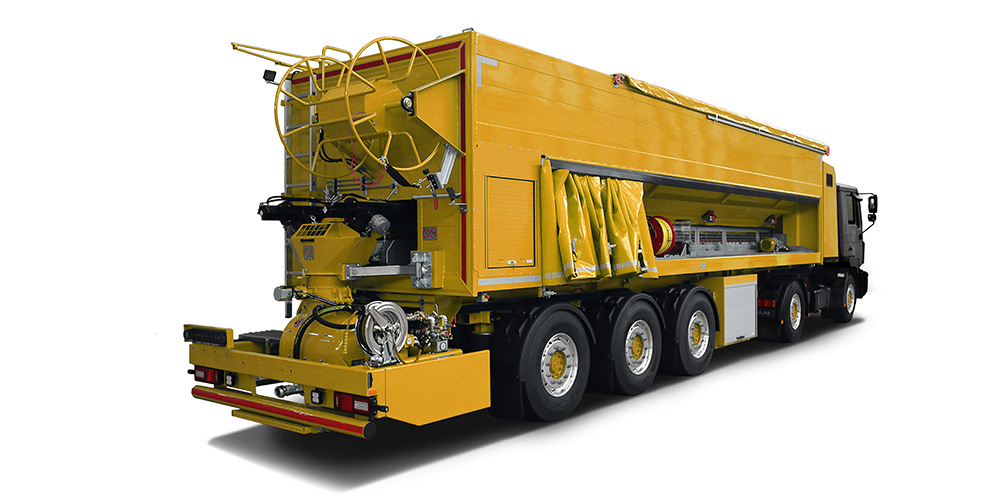

TransMix 5500 TML
R0,00
The TransMix 5.500 TML is designed as a horizontal-operating system and is now also available for cement and anhydrite screeds with a pneumatic conveyor
The TransMix 5.500 TML is designed as a horizontally operating system to offer our customers the following advantages:
■ Efficiency through maximum payload with the largest possible volume of the skip
■ Economical due to the best ratio of tare weight to payload thanks to aluminium construction
■ Fuel-saving thanks to the use of an efficient drive unit and optimisation of the hydraulic system
■ Best driving characteristics due to positively steered axles 2 and 3
■ Space-saving and comfortable in dense traffic due to optimised steering radii when cornering
